37 Degree FJIC Swivel Union

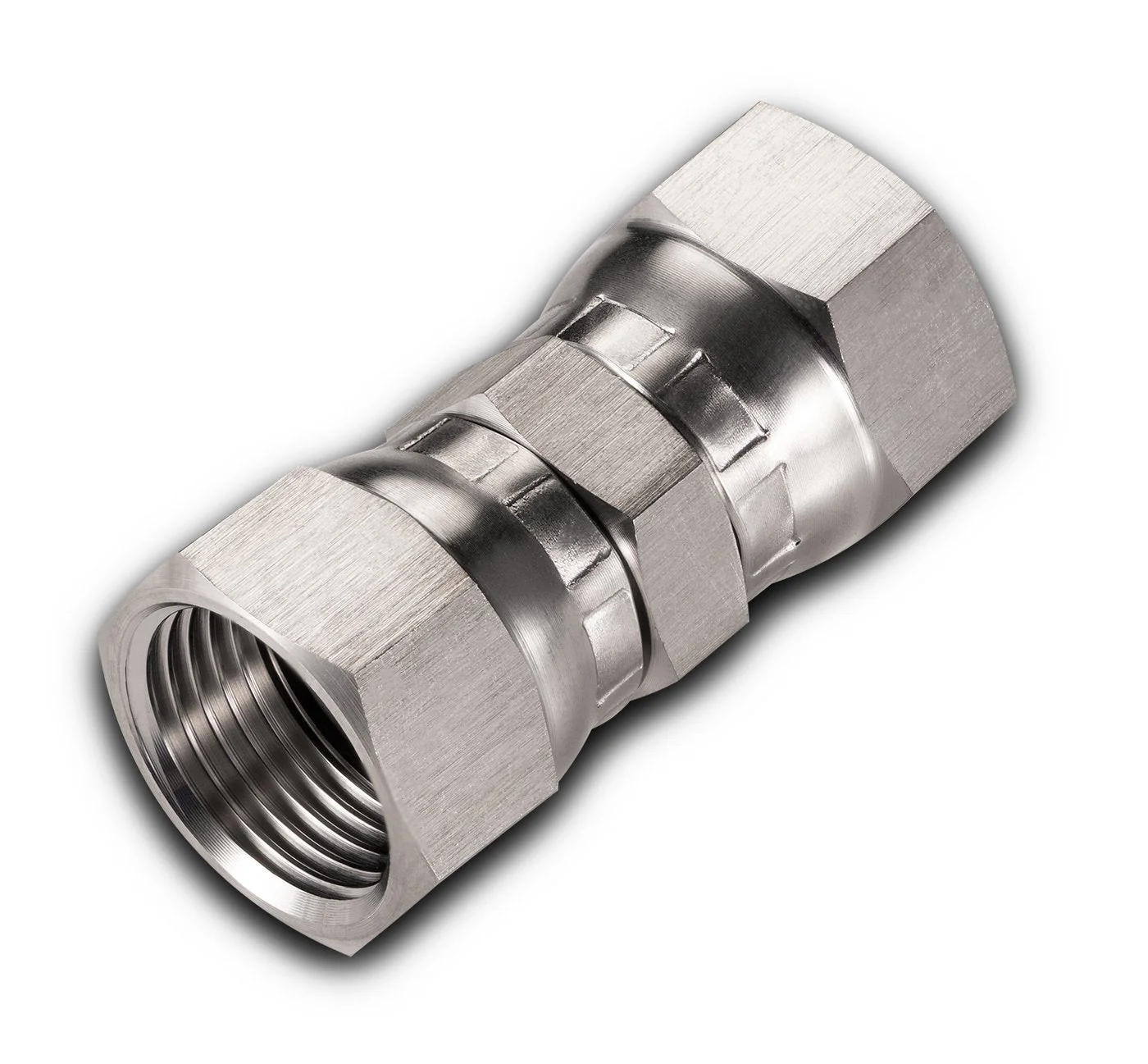

BVV™ 37° FJIC Swivel Union
BVV™ brand stainless steel parts are made with precision 304 Grade Stainless Steel and are clean and free from burrs or debris. These fittings are 37° JIC threads and will create a seal by compressing the flared end against an opposite female/male flared connection. JIC connections do not require thread sealant because they seal off the flared surface of the fitting JIC Fittings are also not the same size as NPT fittings but do have the same size nomenclature. When connecting JIC fittings to one another it is recommended by BVV™ to use 2 wrenches - 1 to tighten the fitting and 1 to hold back against the force applied to create resistance and ensure a better seal.
Female JIC Swivel union allows users to attach Male JIC connectors or convert a MJIC connection to a female connection. Swivels are unique because they can be oriented to the direction the part needs to be facing.
BVV™ FJIC Swivel Union - Data Sheet
| Specifications | |
|---|---|
| Material | 304 Stainless Steel |
| Connection Type(s): | 1/4" 37° FJIC (7/16-20) |
| 3/8" 37° FJIC (9/16-18) | |
| Sizes Available: | 1/4" |
| 3/8" x 1/4" | |
| 3/8" | |
Original: $17.00
-70%$17.00
$5.10Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
BVV™ 37° FJIC Swivel Union
BVV™ brand stainless steel parts are made with precision 304 Grade Stainless Steel and are clean and free from burrs or debris. These fittings are 37° JIC threads and will create a seal by compressing the flared end against an opposite female/male flared connection. JIC connections do not require thread sealant because they seal off the flared surface of the fitting JIC Fittings are also not the same size as NPT fittings but do have the same size nomenclature. When connecting JIC fittings to one another it is recommended by BVV™ to use 2 wrenches - 1 to tighten the fitting and 1 to hold back against the force applied to create resistance and ensure a better seal.
Female JIC Swivel union allows users to attach Male JIC connectors or convert a MJIC connection to a female connection. Swivels are unique because they can be oriented to the direction the part needs to be facing.
BVV™ FJIC Swivel Union - Data Sheet
| Specifications | |
|---|---|
| Material | 304 Stainless Steel |
| Connection Type(s): | 1/4" 37° FJIC (7/16-20) |
| 3/8" 37° FJIC (9/16-18) | |
| Sizes Available: | 1/4" |
| 3/8" x 1/4" | |
| 3/8" | |
