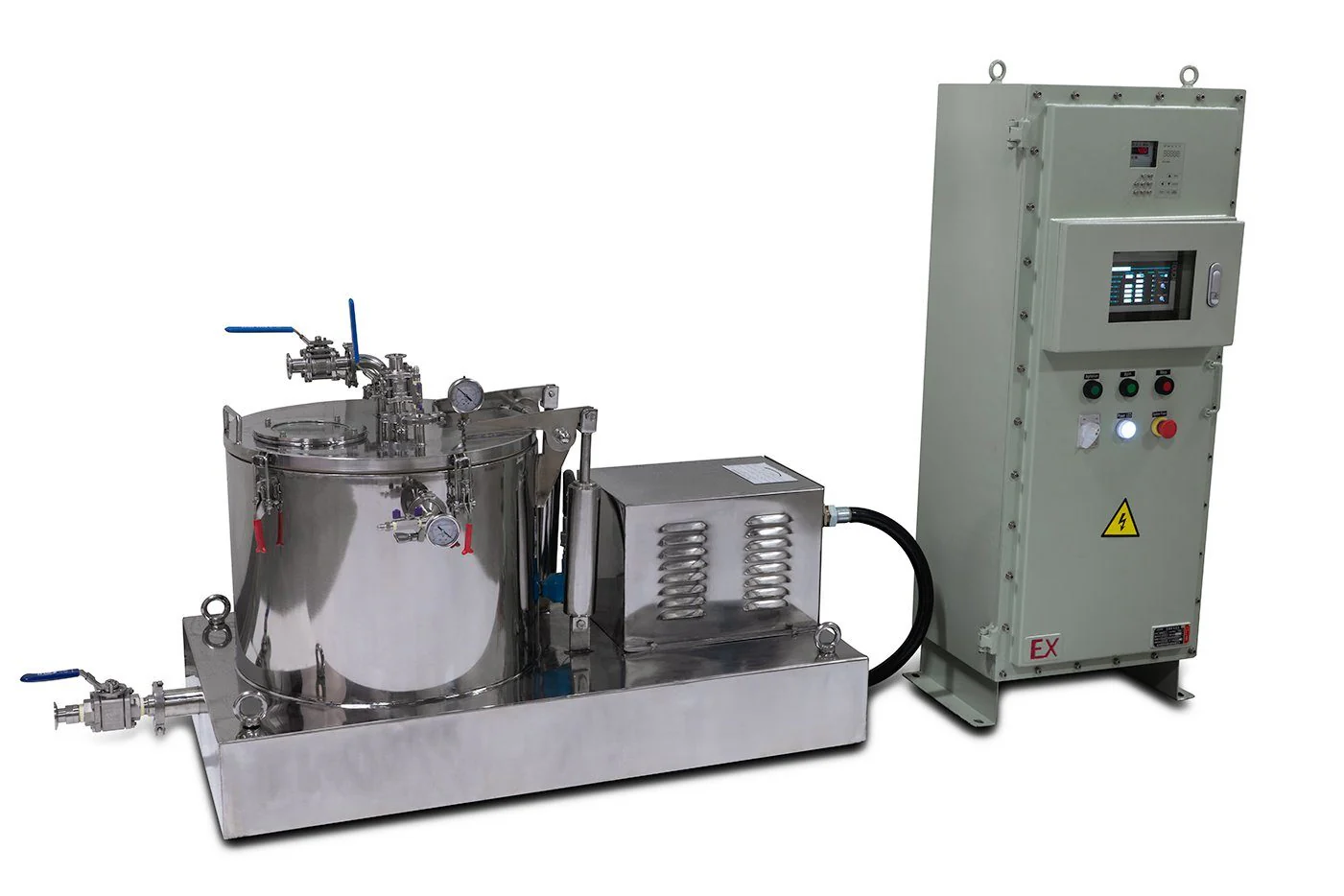

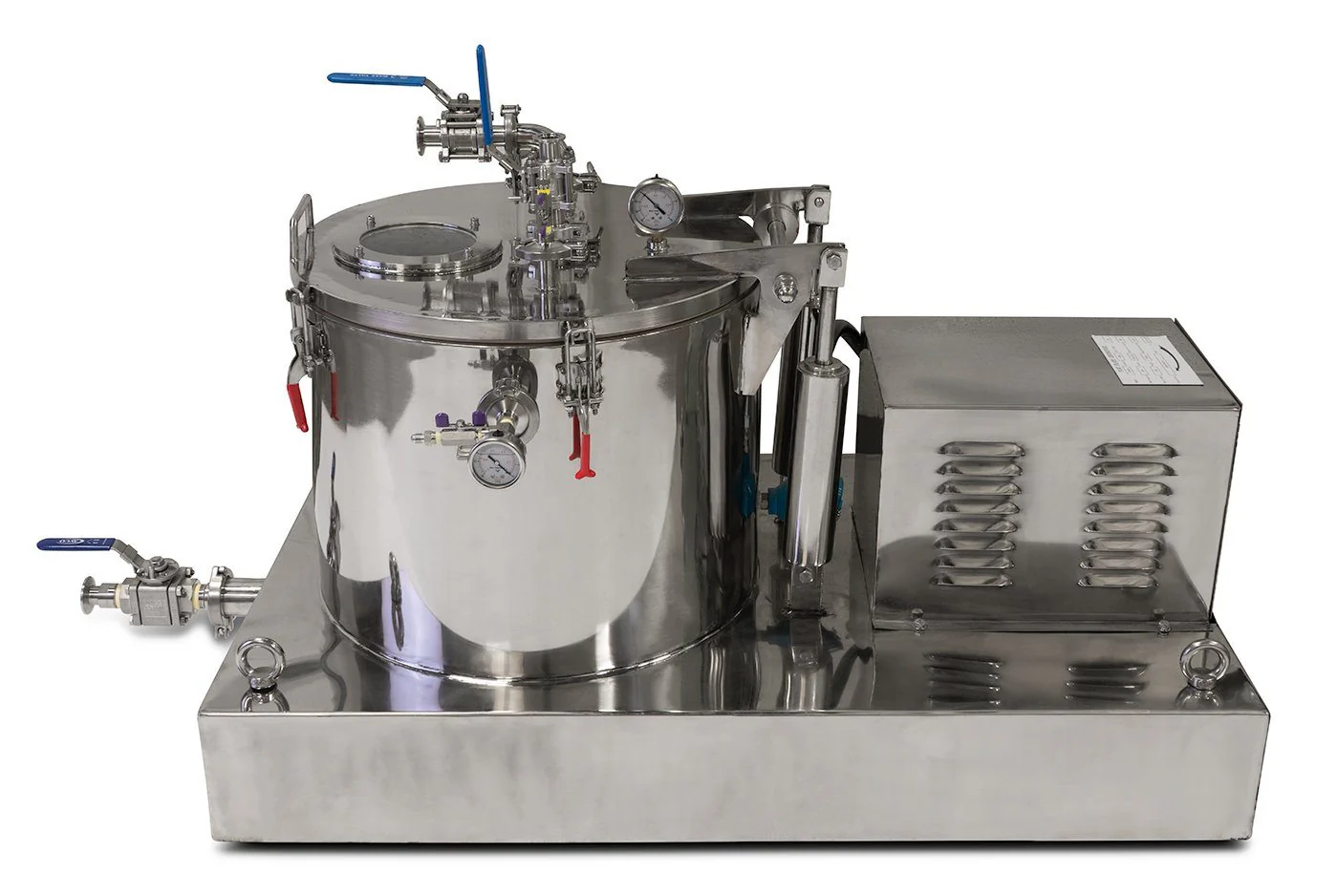

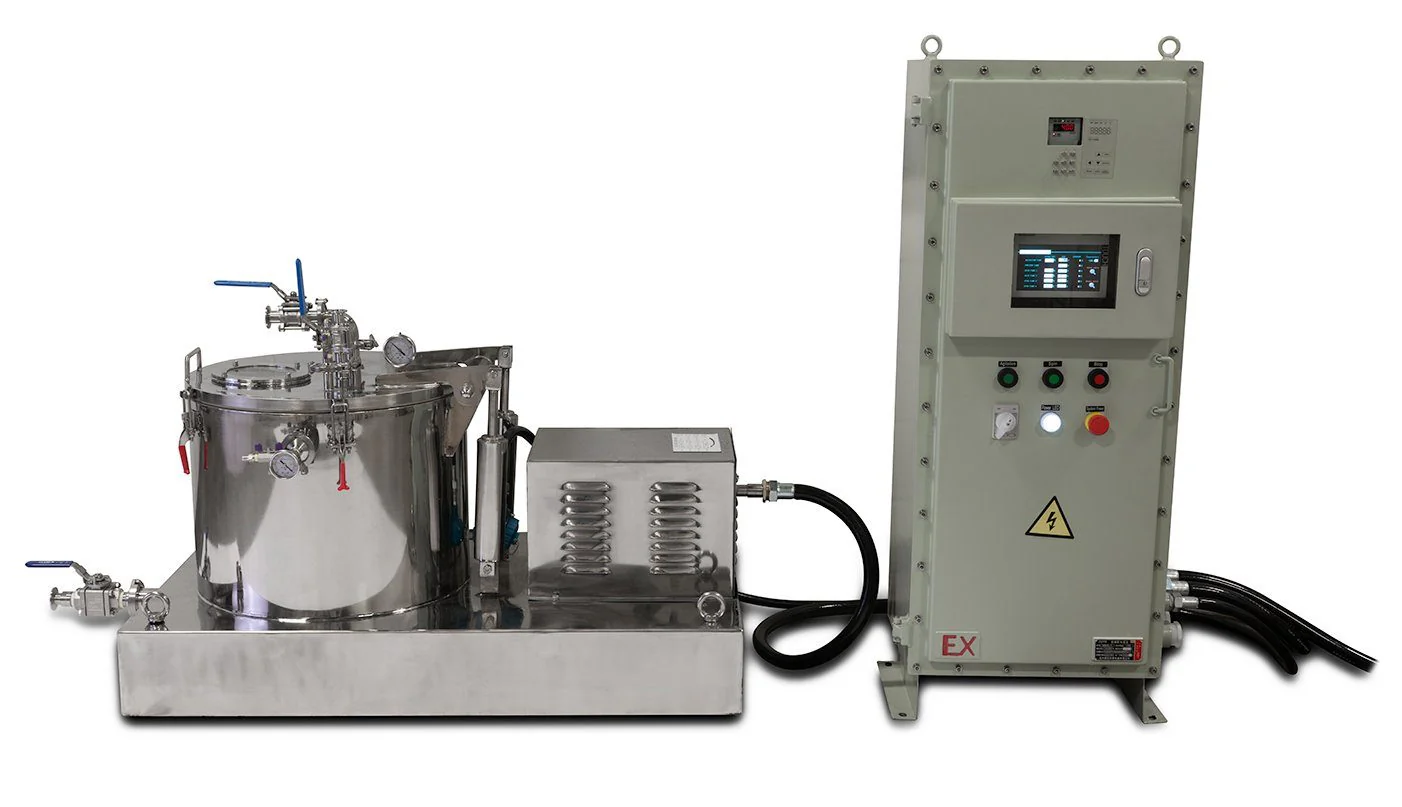

Certified 45L Ethanol Wash/Dry Centrifuge with Explosion Proof Motor and Controller

Notice to Customer: This unit has 4 lift points (one in each corner) and requires a forklift to lift it. It will also ship via freight only.

 Industrial Centrifuges are used to separating liquids from solids and this style of centrifuge excels at alcohol extraction by forcefully separating the alcohol from the biomass.

Key Features:

• Siemens Touch Screen Controller

• Explosion Proof Controller Housing and Motor
• Agitation and Spin Dry Modes
• Max 1500 RPM with Gradual Speed Stepping
• 566 Separation Factor
• Multiple Connection Ports/Sizes
• High Polish Stainless Steel Components
• Shock absorbing legs
• Vacuum Jacket with Two 1" Tri-Clamp Fittings

• Pre-wired and Tested for Easy Installation


*BVV Centrifuges are now available certified by PRV Engineers. Field visits/verification letters are an additional $4,000 + travel expenses.*

Specifications
Capacity	45L
Drum Dimensions	17.7" (450mm) Diameter x 11-7/8" (300mm) Deep
Max Capacity	15lbs (6.8Kg)
Speed	1500 rpm
Separation Factor	566
Electrical	240V 1Ø (10.58A)
Weight	794lbs (360Kg)
Exterior Dimensions	50" x 27.6" x 28.7" (1280mm x 700mm x 730mm)
Viewport Diameter	5.5"
Connection Size(s):	2" Tri-Clamp Drain Port
	1" Tri-clamp Side Port X 2
	1" Tri-Clamp Top Port
	1.5" Tri-Clamp Top Port
	1/4" FNPT Top Port
	KF25 Top Port
